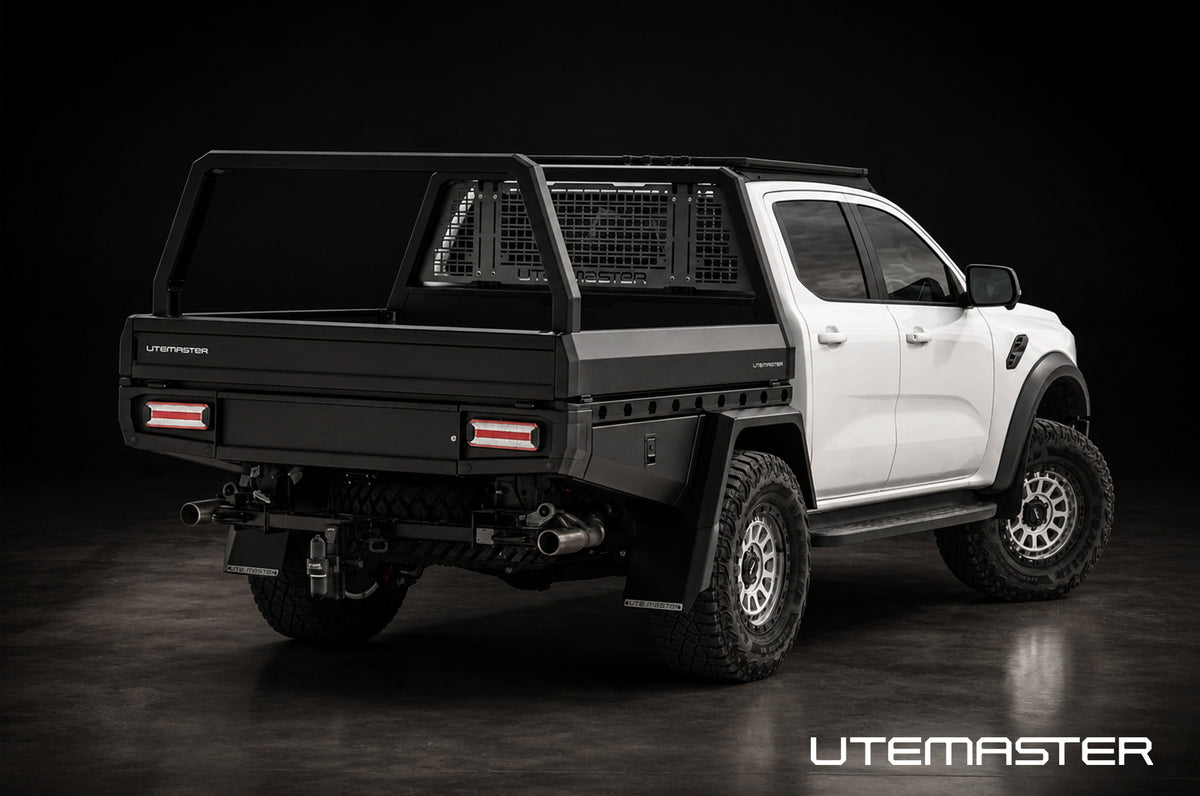

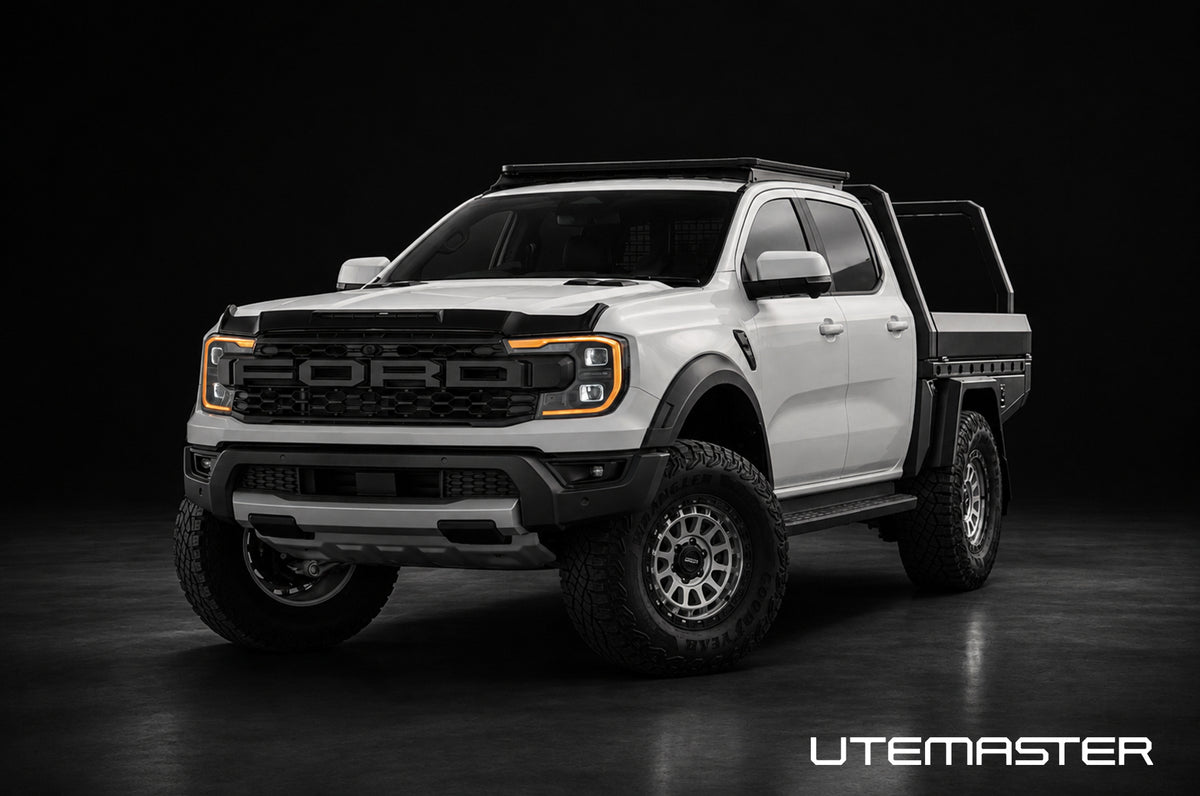

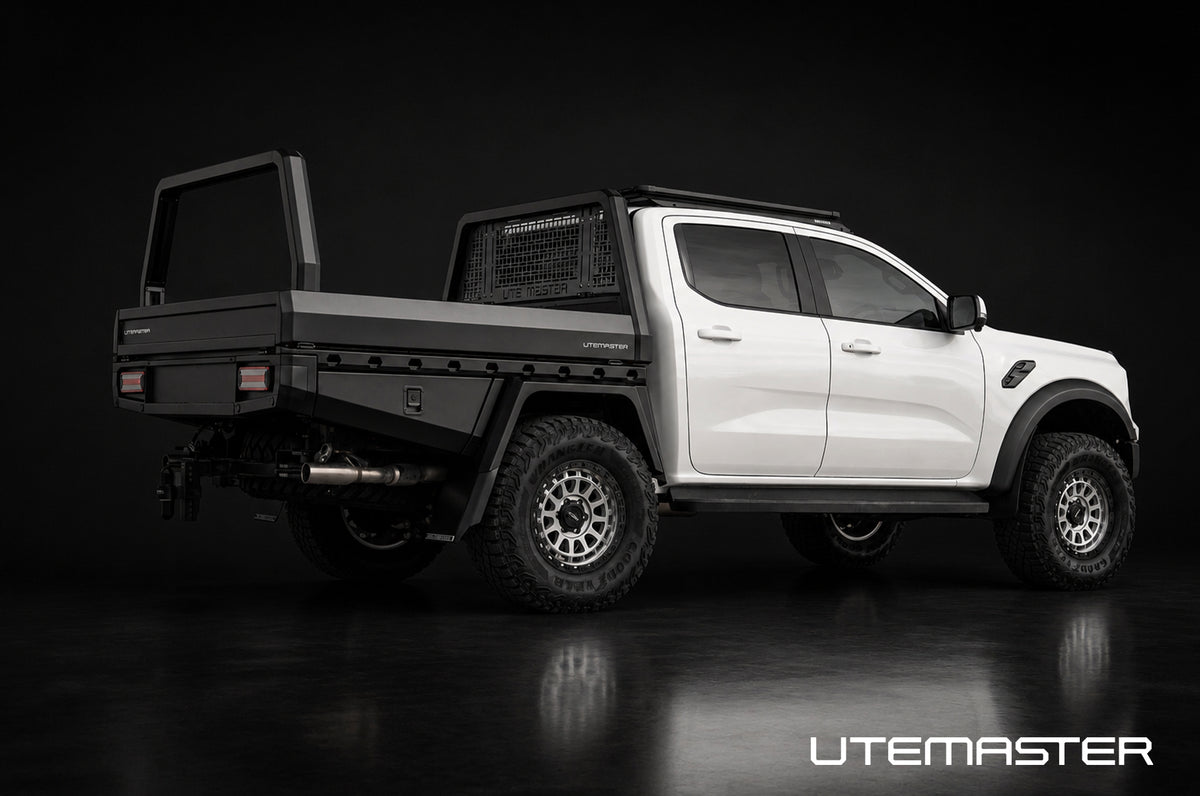

Ford Ranger Full-Time Tray
The Utemaster TrailCore Tray is built for tradies, fleets, and adventurers who need maximum load space without compromise. Engineered for the Ford Ranger, available for both the 2022+ (Next Gen) and 2011-2022 (PX1/PX2/PX3), the Strong Bones aluminium extrusion design gives you a tray that's lighter than steel and stronger than standard aluminium tray construction, built for real-world conditions day in, day out.
Slam latch sideboards, quick-release removal, and the market-leading undertray drawer mean you spend less time wrestling with your setup and more time getting the job done. The MULE-TEK system keeps your configuration adaptable as your needs change.
- Strong Bones: Heavy-duty aluminium extrusions form the backbone of the tray, delivering a superior strength-to-weight ratio that outperforms standard aluminium tray designs.
- Slam Latch Side Boards: No fiddly anti-luce fasteners or over-centre latches - quick and easy to use with no externally protruding features for a sleek, modern look.
- Quick-Release Side Boards: Remove and reinstall in seconds without any moving parts or fasteners. Store them in the undertray drawer when not needed.
- Huge Undertray Drawer: The largest lockable undertray drawer on the market. Long enough to store your side boards and compatible with central locking.
- Strong Headboard: Engineered as a single reinforced unit, not a bolt-together afterthought. Extensively tested to withstand forces in an accident. Add a MULE-TEK panel for practical load carrying.
- Rear Radar Integration: Inbuilt bumper housing protects your factory radar, blind spot, and reverse camera systems from offroad damage.
- 5-Year Warranty: Backed by Utemaster's quality guarantee. We'll make it right, no questions asked.
Compatible with a full range of TrailCore accessories including underbody drawer, underbody toolbox, underbody water tank, cantilever roof rack, MULE-TEK headboard panel, rear ladder rack, and central locking.
Accessories
There is a huge range of accessories available for the TrailCore, check them out here:
These options are also listed on our Ute Builder which allows you to configure your dream setup:
Dimensions
Click here to download the product dimensions.
Operators across AU and NZ
CUSTOMER PHOTOS
TrailCore Tray Features
Strong Headboard
Worried about what happens to your cab and passengers in an accident? The TrailCore Tray headboard not only looks tough, but it has been extensively tested to ensure it can withstand forces in the event of an accident (unlike a flimsy bolt together unit). And by adding a Mule-tek panel its also super practical for carrying gear.
Strong Bones
Aren't Aluminium trays often flimsy and bend easily? The TrailCore Tray is an exception! Heavy Duty Extrusions form the Strong Bones of the Tray giving it a superior strength-weight ratio.
Slam Latch Side Boards
Fiddly anti-luce fasteners or over-centre latches on Tray sideboard can be frustrating to work with - the TrailCore Tray slam latch sideboard catches are quick and easy to use, and remove any externally protruding features giving a sleek and modern look.
Quick-Release Side Boards
Sometimes you want to carry a load without the sideboards on, but R clips can be fiddly to use and easy to lose causing your sideboards to fall off down the track. The TrailCore Tray Innovative hinge mechanism allows you to quickly remove the side board if needed, and then install them back on in a few seconds without any moving parts or fastners!
Huge Undertray Drawer
Small cases and parts are vulnerable to theft on the Tray, so secure storage is a must. The TrailCore boasts the largest lockable undertray drawer on the market, meaning you can store a huge amount of gear down low and out of the way! Better still, its long enough to take your side boards if you take them off and is compatible with central locking.
Dimensions:
Double Cab: 820mm Wide x 1700mm Long
Extra Cab: 820mm Wide x 2000mm Long
Single Cab: 820mm Wide x 1700mm Long
Internal Tie-Down Points
Strapping loads over your side boards can mean that the sideboards can get damaged and the load becomes loose. The TrailCore Tray comes standard with 6x internal recessed Heavy Duty tie down rings to give you extremely strong structural tie down points at a low angle. They also work well with a load that is lower than the height of your sideboards.
Cutting Edge Design
No corners have been cut on designing this Tray with the unmistakable Utemaser design stamp! It looks tough, well-balanced, with a good mix of chunky angles, smooth sides (no rivets or bolts) and combined with finesse and refinement!
Infil Panels
Often a Tray will have areas of the underbody exposed either side of the mudguards. This leaves the vehicle looking unfinished and out of shape.
TheTrailCore Tray comes standard with infill panels to suit the contours of the ute it's going on. These are all model-specific and will cover up any exposed areas under the body, enhancing the overall style.
Lightweight But Strong
The TrailCore Tray is lightweight so you can take more gear with you without exceeding your payload. This has been achieved using the aluminium extrusion design which requires less material to achieve a strength rating that exceeds a lot of Aluminium Tray designs.
Keeping your weight down is not only important for driver safety, but it also reduces fuel consumption and improves offroad dynamics.
Built with Strong Bones
Engineered for zero failure and maximum payload is the standard every product has to meet before it ships.
Thermal testing, cycle testing, load rating, and shake testing - that's the baseline. Then we take it further. Strong Bones extreme testing pushes every product to its limits, so you never have to find them yourself.
That's the confidence behind our 5-year warranty. If it's not right, we'll make it right - no questions asked.
Design & engineering
World Class Manufacturing
When you pay a premium, you expect premium quality. Built in our world-class New Zealand facility, every product reflects precision and care. When you see it up close, the attention to detail speaks for itself.
#FAST-FIX
When something goes wrong with your ute, every minute of downtime counts. We developed a streamlined, priority system called #fastfix to ensure that any issues jump the queue to get you up and running in no time.
Premium Aesthetic
Most products on the market are made generic to fit multiple vehicle brands, this benefits manufacturers more than owners. But every Utemaster product is custom-tailored for each model. Smooth radius corners and hidden rivets - this is precision that truly matters.
QUALITY
We guarantee our quality to be right, if its not right, we'll make it right. No questions asked.
Testing
When it comes to testing, Utemaster leaves nothing to chance. Our advanced technology lets us test products in a variety of ways - so you can count on them when it matters most.
Customer Led Development
"Don't ask me, ask the customer" is a motto Utemaster live and breathe. Our products come from real world experience and feedback from customers.
No Flat Packs
Every Utemaster canopy leaves our factory fully built, fully welded, and signed off by our QC team. No flat-pack No leaks.
