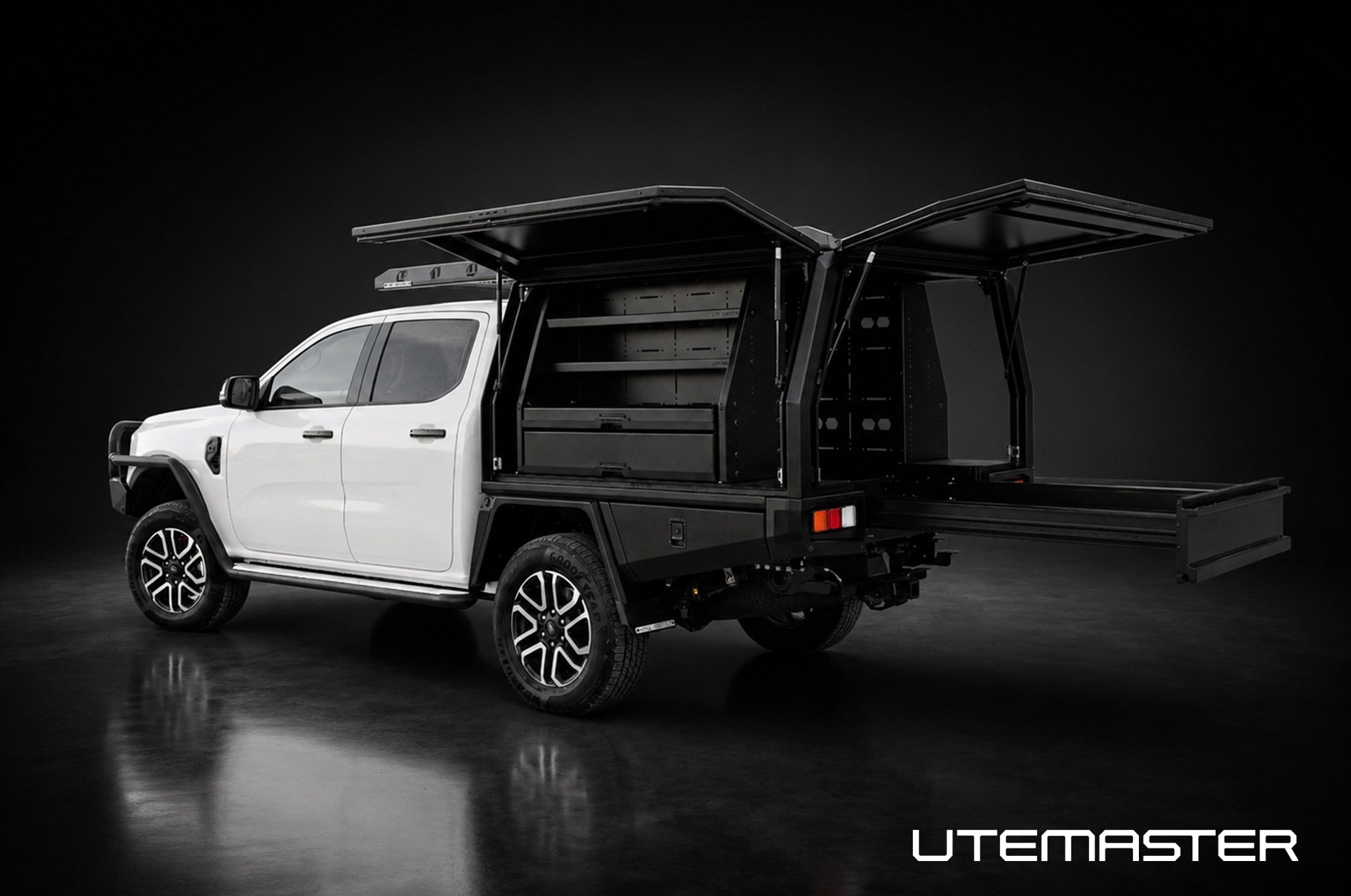

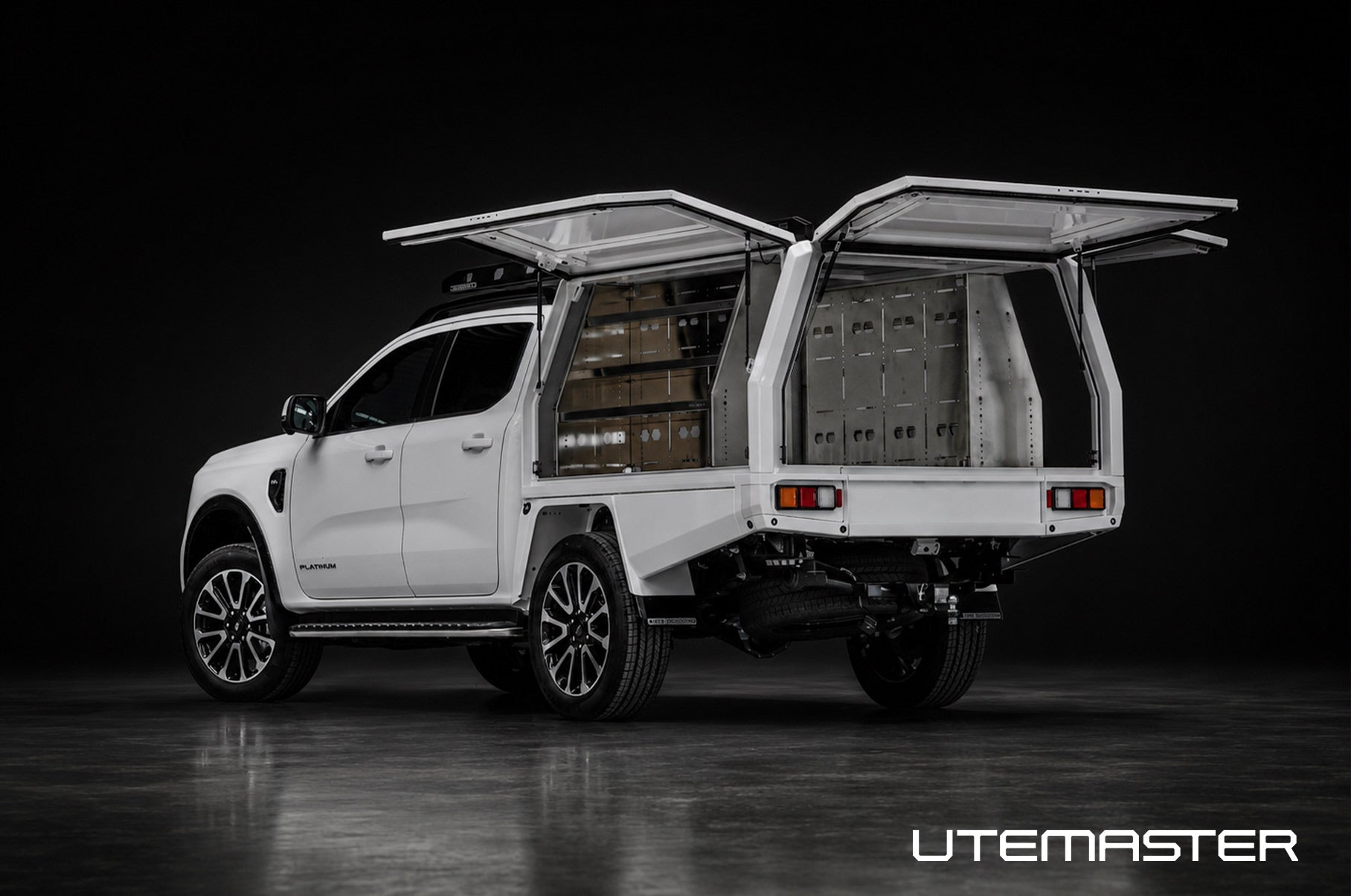

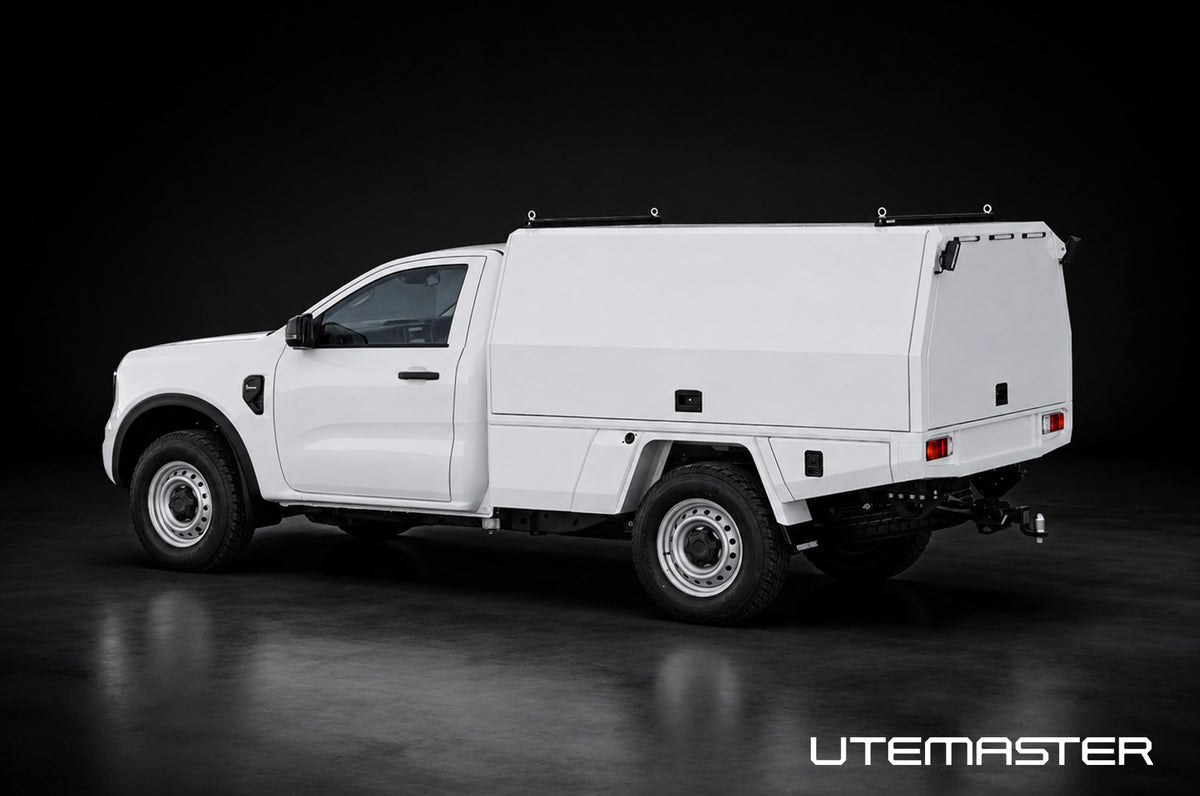

Ford Ranger Full-Time Chassis Canopy
The Utemaster TrailCore is the most spacious, practical and modern full-time canopy ever built.
The Utemaster TrailCore is the most spacious, practical and modern full-time canopy ever built. Engineered for the Ford Ranger, available for both the 2022+ (Next Gen) and 2011-2022 (PX1/PX2/PX3), it's constructed from lightweight aluminium with Strong Bones extrusion technology for maximum storage, security and weather protection.
The revolutionary 4-in-1 flooring system gives you four completely unique base configurations without touching the body structure.
- 4-in-1 Flooring System: Choose from open floor, underfloor compartment, open drawer, or underfloor drawer to suit your setup.
- Strong Bones: Heavy-duty aluminium extrusion construction delivers a superior strength-to-weight ratio, keeping your payload where it belongs.
- Bandit-Proof Slam Lock: A single central handle latches both sides simultaneously. Open and secure your canopy in one motion, even when your hands are full.
- Weather Resistant: Full automotive bulb seals on all doors, built-in rain channels, and no exposed rivets piercing the skin keep gear dry and dust-free.
- Rear Radar Integration: Inbuilt bumper housing protects your factory radar, blind spot, and reverse camera systems. No tacking on underneath.
- 5-Year Warranty: Backed by Utemaster's quality guarantee. We'll make it right, no questions asked.
Compatible with a full range of TrailCore accessories including centre drawer, shelving and drawers, split door, cantilever roof rack, underbody toolbox, underbody water tank, central locking and more.
Accessories
There is a huge range of accessories available for the TrailCore, check them out here:
These options are also listed on our Ute Builder which allows you to configure your dream setup:
Dimensions
TrailCore Service Body Dimensions: Download
Operators across AU and NZ
CUSTOMER PHOTOS
Features & Benefits
Make Dead Space Come Alive!
Accessing gear positioned in the center of a Service Body can be challenging, especially if your Ute has been lifted. This not only reduces productivity but also raises the risk of strain injuries on the job.
The TrailCore Service Body solves this with its innovative drop-down floor design. The center section acts as a full-length drawer, allowing you to slide gear out from the middle and access it easily from the rear. This ensures you can make full use of the Service Body, maintaining a smooth and efficient workflow on the job site.
Large door openings
Whether you're at the job site or the camp site, ease of unloading is key to getting stuff done and enjoying adventures.
The door sills are shaped to enable equipment to slide in and out smoothly without the need to lift it over the door frame. This speeds up access to your gear.
Additionally, the full-width rear door extends to the edge of the body, providing much greater access from the rear, especially when reaching for items stored on the central shelves.
Design Registration: 431575
Cutting edge design
Does your ute live up to the demands of your lifestyle?
Whether you're off-roading in the bush, cruising the motorway, or at the beach, the TrailCore Service Body delivers both style and performance.
Its refined design, which follows the contour of the ute body, is sure to turn heads. Plus, with no exposed rivets on the exterior, it's perfect for easy signwriting.
Design Registration: 431188, 431189
Infill Panels
Often a Service Body or tray and canopy combo will not come standard with infill panels, leaving areas of the underbody exposed.
This leaves the vehicle looking unfinished and out of shape.
The Utemaster TrailCore Service Body comes standard with infill panels to suit the contours of the ute it's going on. These are all model-specific and will cover up any exposed areas under the body, enhancing the overall style.
Rear radar integration
Most modern utes come with rear radar systems that assist drivers with features like blind spot warnings, cross-traffic alerts, and reverse braking.
When fitting a tray or body, these radars often get tacked on underneath which makes them vulnerable to damage offroad.
The TrailCores rear bumper is designed to securely house the radar system, keeping it protected from damage.
Lightweight but strong
With the amount of gear you need for work and adventure, it doesn't take much to max out your payload!
Keeping your weight down is not only important for driver safety, but it also reduces fuel consumption and improves offroad dynamics.
The Utemaster TrailCore Service Body is lightweight so you can take more gear with you. This has been achieved using the aluminium extrusion design which requires less material to achieve a strength rating that easily matches traditional Service Body designs.
Weather resistant
With the amount of gear you need for work and adventure, it doesn't take much to max out your payload!
Keeping your weight down is not only important for driver safety, but it also reduces fuel consumption and improves offroad dynamics.
The Utemaster TrailCore Service Body is lightweight so you can take more gear with you. This has been achieved using the aluminium extrusion design which requires less material to achieve a strength rating that easily matches traditional Service Body designs.
Work bench
With the amount of gear you need for work and adventure, it doesn't take much to max out your payload!
Keeping your weight down is not only important for driver safety, but it also reduces fuel consumption and improves offroad dynamics.
The Utemaster TrailCore Service Body is lightweight so you can take more gear with you. This has been achieved using the aluminium extrusion design which requires less material to achieve a strength rating that easily matches traditional Service Body designs.
Slam Lock
Tray canopies usually have two locks per door, making it time-consuming to access your gear, with six locks to manage.
The Utemaster TrailCore Service Body features a single slam-lock handle in the center, latching on both sides for easy access and security.
This allows you to open the body in one quick motion, even when carrying gear.
4 IN 1 Flooring System
#1 Open Floor
This creates a very flexible easy load height/storage area and is perfect for people who have varying roles. It allows for tall objects to be carried in the centre section, while tool cases and smaller parts can be carried in shelving units.
Design Registration: 431190, 431558
#2 Underfloor Compartment
This is perfect for storing large objects out of the way such as ladders without compromising the main service body storage area and having to mount the ladder to the roof. This area is accessible via a separate tailgate.

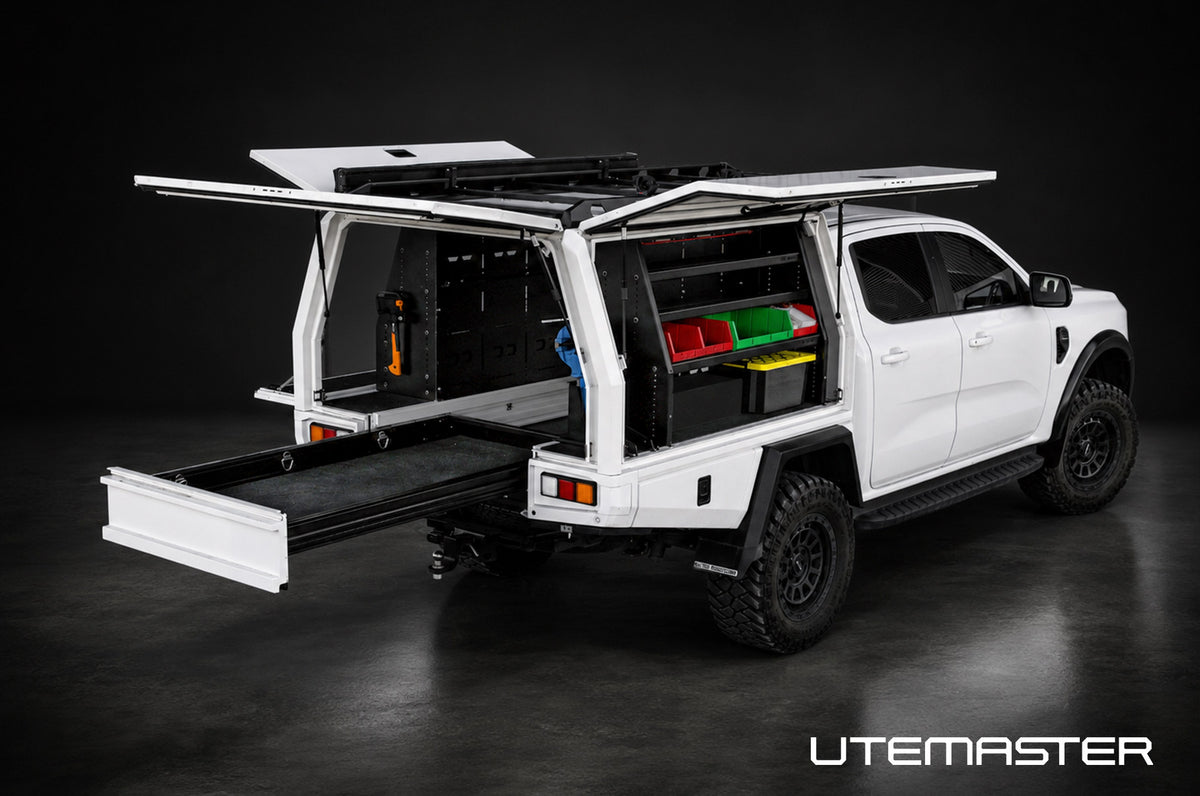

#3 Open Drawer
This works like a sliding platform which is perfect for storing large heavy objects up the front in between the shelving and easily getting them in and out of the body. It's also super practical for mounting an extra set of shelving which can be slid out the back for access on demand.
Design Registration: 431557
#4 Underfloor Drawer
This is the equivalent of a traditional Service Body with an Underbody Drawer. You get a flat floor and a closed drawer under the floor. The key differences are that the body doesn't get lifted to fit a drawer underneath and the underfloor drawer is now much longer.
Built with Strong Bones
Engineered for zero failure and maximum payload is the standard every product has to meet before it ships.
Thermal testing, cycle testing, load rating, and shake testing - that's the baseline. Then we take it further. Strong Bones extreme testing pushes every product to its limits, so you never have to find them yourself.
That's the confidence behind our 5-year warranty. If it's not right, we'll make it right - no questions asked.
Design & engineering
World Class Manufacturing
When you pay a premium, you expect premium quality. Built in our world-class New Zealand facility, every product reflects precision and care. When you see it up close, the attention to detail speaks for itself.
#FAST-FIX
When something goes wrong with your ute, every minute of downtime counts. We developed a streamlined, priority system called #fastfix to ensure that any issues jump the queue to get you up and running in no time.
Premium Aesthetic
Most products on the market are made generic to fit multiple vehicle brands, this benefits manufacturers more than owners. But every Utemaster product is custom-tailored for each model. Smooth radius corners and hidden rivets - this is precision that truly matters.
QUALITY
We guarantee our quality to be right, if its not right, we'll make it right. No questions asked.
Testing
When it comes to testing, Utemaster leaves nothing to chance. Our advanced technology lets us test products in a variety of ways - so you can count on them when it matters most.
Customer Led Development
"Don't ask me, ask the customer" is a motto Utemaster live and breathe. Our products come from real world experience and feedback from customers.
No Flat Packs
Every Utemaster canopy leaves our factory fully built, fully welded, and signed off by our QC team. No flat-pack No leaks.
ADVENTURE WITHOUT FAILURE
Imagine pulling up on a job, site or at camp and having exactly what you need, dry and ready to go.
That's what the right setup feels like.
Customer Transformation Stories
Hear from a selection of the 50,000+ operators who trust our gear.
Emergency Service Ute Fitout
Auckland Emergency Management coordinate New Zealand Response Teams across South, West, and North Auckland. These are highly skilled, trained volunteers who step forward when communities come under pressure, responding to...
Emergency Service Ute Fitout
Emergency Service Ute Fitout
Frequently Asked Questions
-
For an accurate fitting quote, head to the Dream Ute Builder to spec up your ute and get an instant estimate. Our sales team can also assist with a personalised quote.
-
The TrailCore Full-Time Canopy is only available through our certified fitting agents - we don't freight it for self-install. This ensures your canopy is fitted correctly and your 5-year warranty remains valid. We're continuing to grow our fitting network across New Zealand & Australia. We'll help you find an agent near your location.
-
The Full-Time Canopy is chassis-mounted rather than tub-mounted, which means it doesn't require a headboard. This saves cost and gives you significantly more internal storage space. It's a permanent setup designed for those who need maximum capacity every day. It is also referred to as a Service Body.
-
Yes, finance options are available. Contact our sales team and they'll walk you through what's on offer.
-
A standard Double Cab TrailCore Service Body configuration weighs approximately 243.6 kg as a base (including body, underbody drawer, chassis mounts, and standard accessories). With all optional accessories added the total can reach around 392.6 kg. Use the Dream Ute Builder to calculate the exact weight of your chosen configuration.
-
Like any metal body parked in direct sun, the exterior will warm up. That said, customers report excellent results with fridges - one noted: "I went camping on Fraser in summer for 7 days straight and my fridge was faultless. Not a warm beer in sight."
-
Yes. The interior is lined with heavy-duty plywood flooring, making it easy to bolt down fridge slides and other equipment. The body also features built-in T-Tracks throughout the aluminium extrusion frame, so you can mount a fridge slide or other accessories with ease.
-
Yes. Since the doors are made from aluminium, you can easily fix recovery track mounting pins directly to the door surface.
-
We recommend mounting the spare wheel inside the body. Most customers position it at the front of the drawer section or against the front wall.
-
The TrailCore extrusion frame features T-Track throughout the interior. You can use these to mount internal shelving units, eyelets, fridge slides, and a wide range of aftermarket accessories - all without drilling.
-
Yes. Every door features a full automotive bulb seal to prevent water ingress, and the body has built-in rain channels so water doesn't run into your gear when you open the doors. The underfloor drawer sits inside the main body, keeping it fully protected from dust and rain.
-

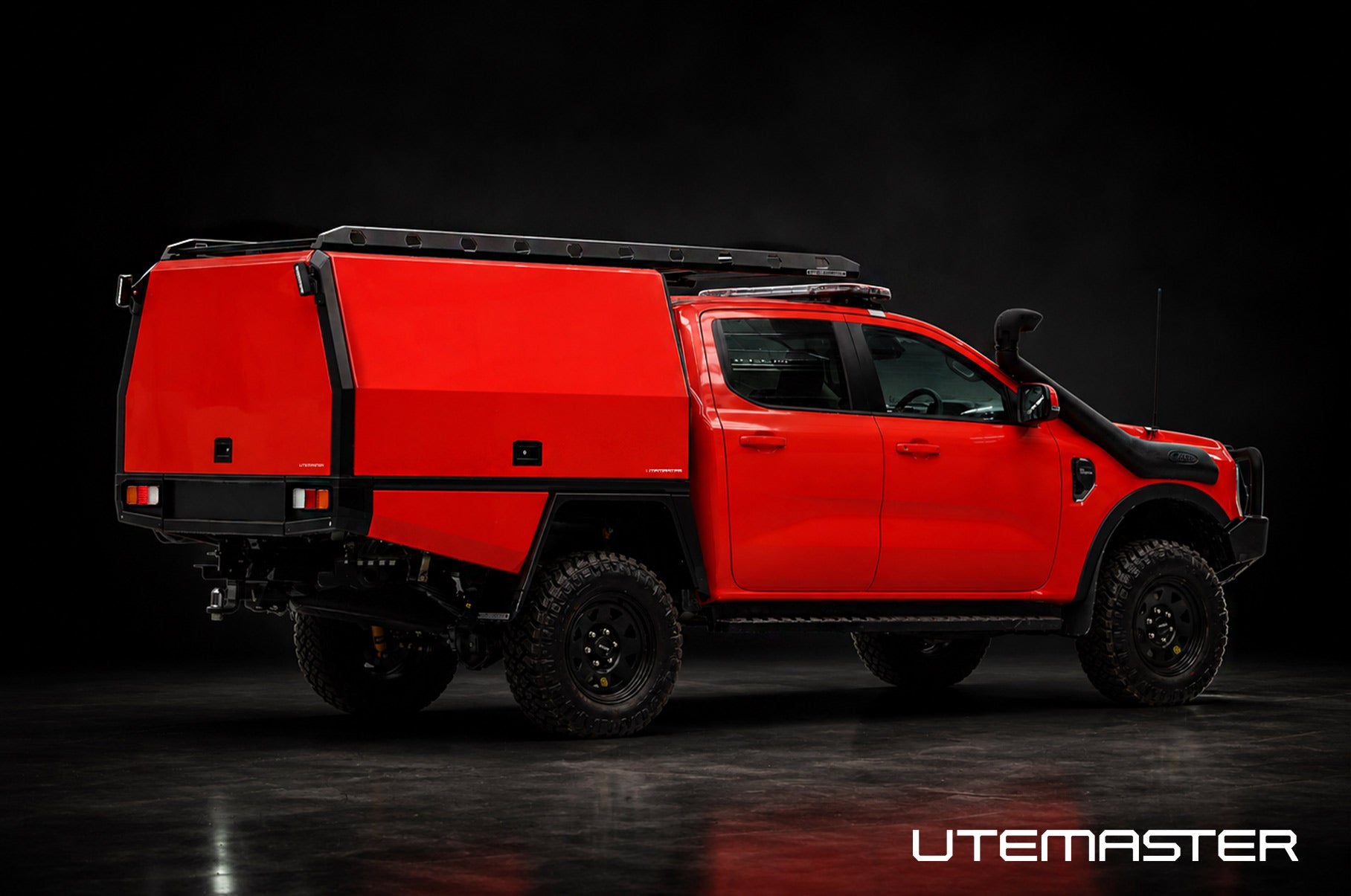

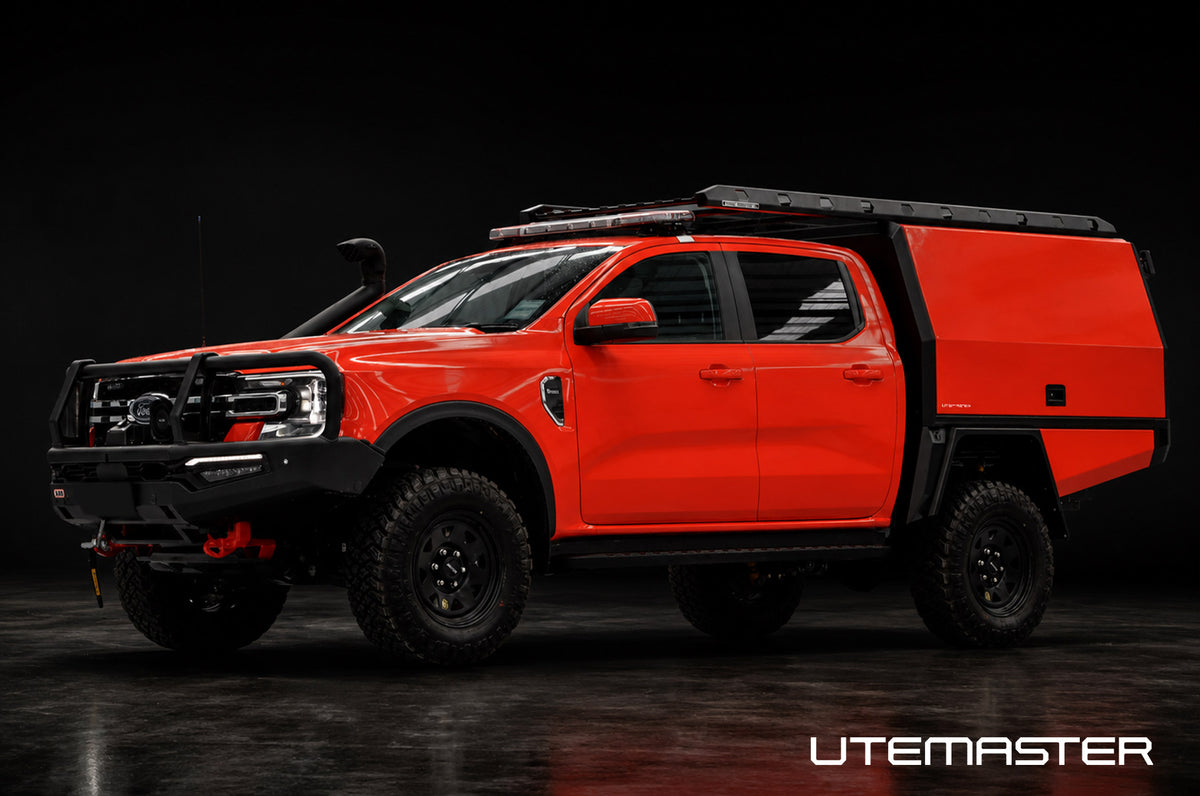

The TrailCore is available in black or white as standard. We can also colour-code it to match your cab colour.
-
The TrailCore Full-Time Canopy is backed by a 5-year warranty. If something isn't right, we'll make it right - no questions asked. Our #FASTFIX programme also prioritises any warranty issues to minimise your downtime.
-
The 4-in-1 system gives you four completely different base configurations without changing the body structure. You can choose from: an Open Floor (maximum flexibility for tall or bulky items), an Underfloor Compartment (stores ladders or long gear via a separate tailgate), an Open Drawer (a sliding platform for heavy items or extra shelving), or an Underfloor Drawer (equivalent to a traditional service body with underbody drawer, but longer and fully weather-protected).
-
Traditional service bodies have a flat floor with a drawer bolted underneath, which raises the body height and exposes the drawer to dust and water. The TrailCore follows the chassis shape in the centre and is raised on the sides for wheel travel. This keeps the overall height lower, protects the drawer inside the body, and makes it easier to reach gear in the centre - especially important as utes get taller.
-
The TrailCore is available for a wide range of popular ute models including Ford Ranger, Toyota Hilux, Toyota LandCruiser, Isuzu D-Max, Mitsubishi Triton, Nissan Navara, Volkswagen Amarok, Mazda BT-50, LDV T60, GWM Cannon, and more. Use the ute builder to confirm availability for your specific model and year.
-
Yes. Every TrailCore Service Body is designed and manufactured at Utemaster's New Zealand facility. It leaves the factory fully built and welded - no flat packs, no assembly required.
-
Yes. The aluminium extrusion frame features T-Track throughout, which means shelving units and accessories can be repositioned without any drilling or modification. This is a major advantage over traditional service bodies where shelving is fixed.
-
Absolutely - it's built for both. During the week it functions as a fully capable tradie service body with secure locking, shelving, and tool storage. On weekends, the same setup works for overlanding, camping, and 4WD trips. The weather sealing, roof rack compatibility, and fridge mounting options make it equally at home on a job site or a remote track.
-
The TrailCore uses a single slam-lock handle in the centre of each door that latches on both sides simultaneously. The lock mechanism is designed like a car door - it cannot be forced open from the outside. There are no exposed lock barrels or weak points for thieves to attack. We call it bandit proof.
-
Yes. Utemaster works with commercial fleets across New Zealand and Australia.
