Service Body Shelving & Drawers
Service Body Shelving & Drawers
Most ute bodies have a flat floor - and the further in you go, the harder it gets to reach your gear. The TrailCore Shelving and Drawer System is designed to fix that, turning every cubic metre of the body into organised, accessible storage.
The system is fully modular. Shelving mounts to the side of the body or inside the drop-down centre drawer, and every unit is adjustable both in height and front-to-back position along the extrusion track. Choose from three configurations - all shelves, mixed shelves and drawers, or drawer-heavy - in 900mm or 1200mm widths, left or right side, in black or silver.

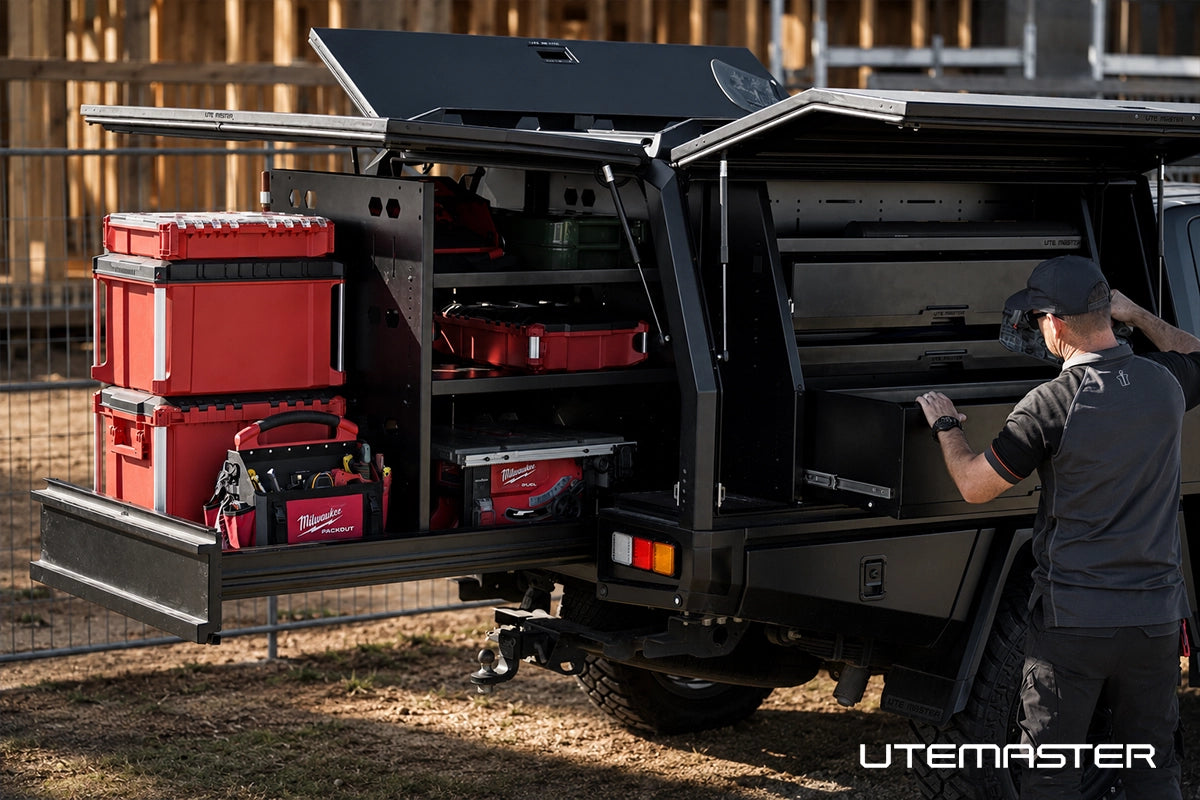

Drawers open single-handed so you're never fumbling when your other hand is already loaded. Available in a full range of configurations - see the options table below.
TrailCore Shelving Specifications
Select a shelving type, width, and colour to see dimensions and the part number.
Sits against one side wall of the canopy, extending roughly halfway across the floor. The other half stays fully open - ideal for ratchet straps, chains, or large flat items.
Side Half Depth

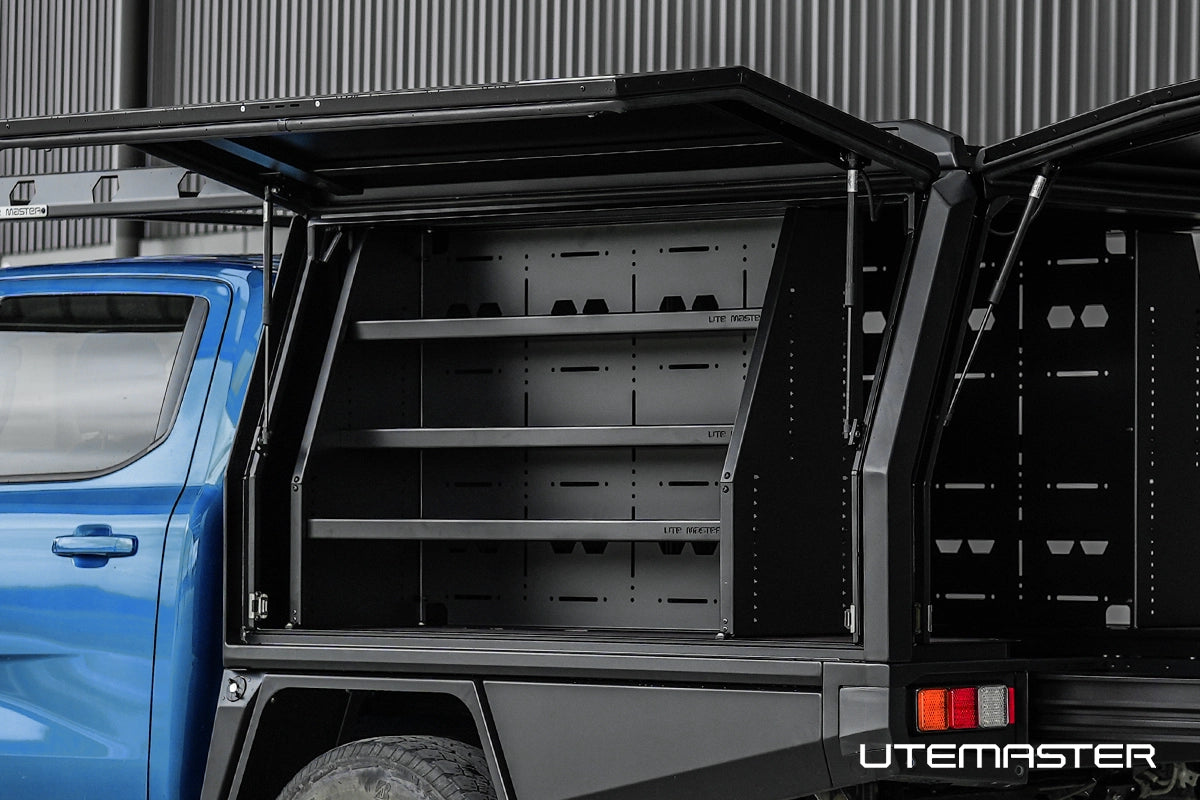

Option 1 - 2 Shelves
Two adjustable shelves. Sits against the canopy side wall at half depth, leaving the other half open.
| Dimension | 900mm |
|---|---|
| A - Overall length | 910mm |
| B - Overall height | 835mm |
| C - Inside length | 840mm |
| D - Overall depth | 395mm |
| E - Top shelf internal depth | 355mm |
| F - Lower shelf internal depth | 225mm |
Part # SBD-SH-SIDEHD-900-1-B
Side Half Depth

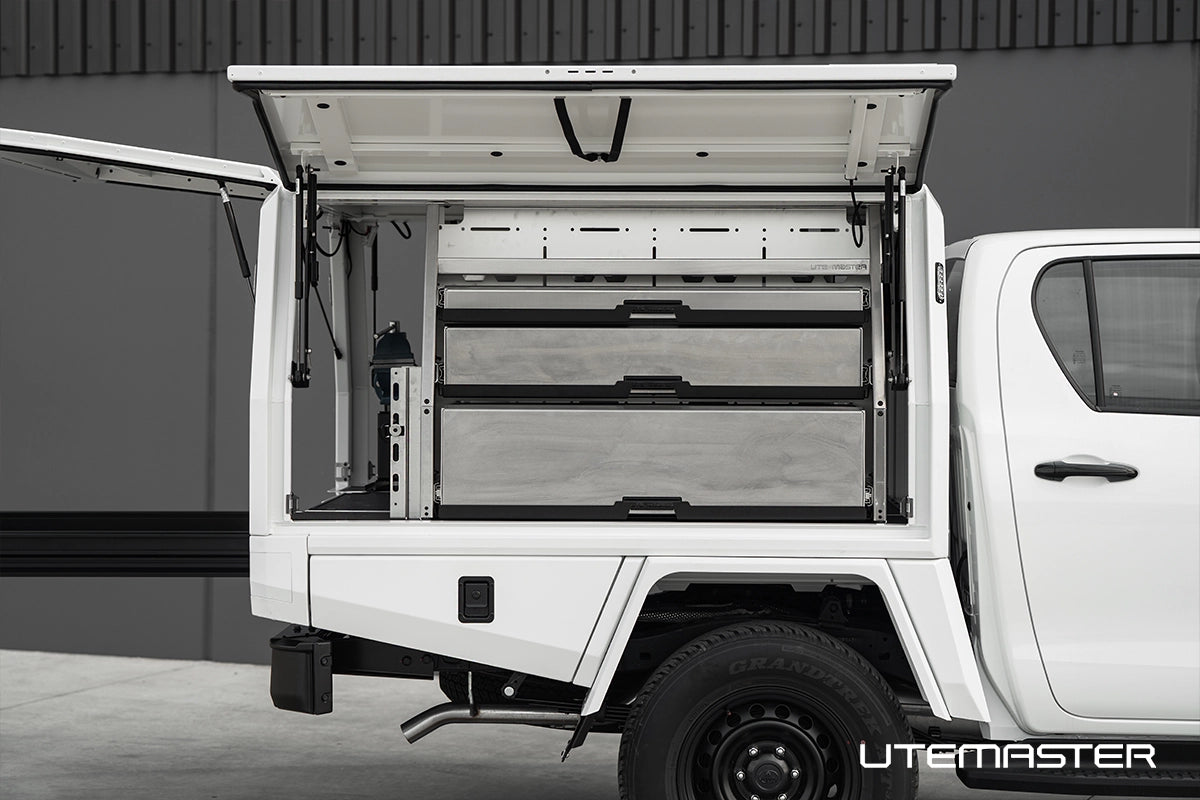

Option 3 - 2 Drawers + Shelf
Open shelf on top, two lockable drawers below (185mm and 85mm). Half depth.
| Dimension | 900mm |
|---|---|
| A - Overall length | 910mm |
| B - Overall height | 835mm |
| C - Inside length | 800mm |
| D - Overall depth | 395mm |
| E - Large drawer height | 185mm |
| F - Small drawer height | 85mm |
| G - Drawer internal depth | 335mm |
Part # SBD-SH-SIDEHD-900-3-B
Side Half Depth
Option 2 - 3 Drawers + Shelf
Open shelf on top, three lockable drawers below (285mm, 185mm, 85mm). Half depth.
| Dimension | 900mm |
|---|---|
| A - Overall length | 910mm |
| B - Overall height | 835mm |
| C - Inside length | 800mm |
| D - Overall depth | 395mm |
| E - Drawer 1 height (large) | 285mm |
| F - Drawer 2 height (medium) | 185mm |
| G - Drawer 3 height (small) | 85mm |
| H - Drawer internal depth | 335mm |
Part # SBD-SH-SIDEHD-900-2-B
Side Half Depth
Add-On Unit
Narrow extension unit to bolt beside a main half-depth side unit. Two shelves.
| Dimension | 300mm |
|---|---|
| A - Overall length | 310mm |
| B - Overall height | 835mm |
| C - Inside length | 270mm |
| D - Overall depth | 395mm |
| E - Top shelf internal depth | 355mm |
| F - Lower shelf internal depth | 225mm |
Part # SBD-SH-SIDEHDADD-300-1-B
Side Full Depth
Option 1 - 2 Shelves
Two adjustable shelves spanning the full depth of the canopy.
| Dimension | 900mm |
|---|---|
| A - Overall length | 910mm |
| B - Overall height | 835mm |
| C - Inside length | 840mm |
| D - Overall depth | 845mm |
| E - Top shelf internal depth | 806mm |
| F - Lower shelf internal depth | 665mm |
Part # SBD-SH-SIDEFD-900-1-B
Side Full Depth
Option 2 - 3 Drawers + Shelf
Open shelf on top, three lockable drawers below (285mm, 185mm, 85mm). Full canopy depth.
| Dimension | 900mm |
|---|---|
| A - Overall length | 910mm |
| B - Overall height | 835mm |
| C - Inside length | 800mm |
| D - Overall depth | 845mm |
| E - Drawer 1 height (large) | 285mm |
| F - Drawer 2 height (medium) | 185mm |
| G - Drawer 3 height (small) | 85mm |
| H - Drawer internal depth | 685mm |
Part # SBD-SH-SIDEFD-900-2-B
Side Full Depth
Add-On Unit
Narrow extension unit to bolt beside a main full-depth side unit. Two shelves.
| Dimension | 300mm |
|---|---|
| A - Overall length | 310mm |
| B - Overall height | 835mm |
| C - Inside length | 270mm |
| D - Overall depth | 845mm |
| E - Top shelf internal depth | 806mm |
| F - Lower shelf internal depth | 665mm |
Part # SBD-SH-SIDEFDADD-300-1-B
Centre Drawer Shelving
Full Depth
In drawer shelving, accessible from one side.
| Dimension | 900mm |
|---|---|
| A - Overall length | 910mm |
| B - Overall height | 1000mm |
| C - Inside length | 840mm |
| D - Overall depth | 820mm |
| E - Shelf internal depth | 780mm |
Part # SBD-SH-CENTREFD-900-1-B
Centre Drawer Shelving
Half Depth
Half Depth with Divider support running up the centre so you can access both sides.
| Dimension | 900mm |
|---|---|
| A - Overall length | 910mm |
| B - Overall height | 1000mm |
| C - Inside length | 840mm |
| D - Overall depth | 820mm |
| E - Shelf internal depth | 355mm |
Part # SBD-SH-CENTREHD-900-1-B
